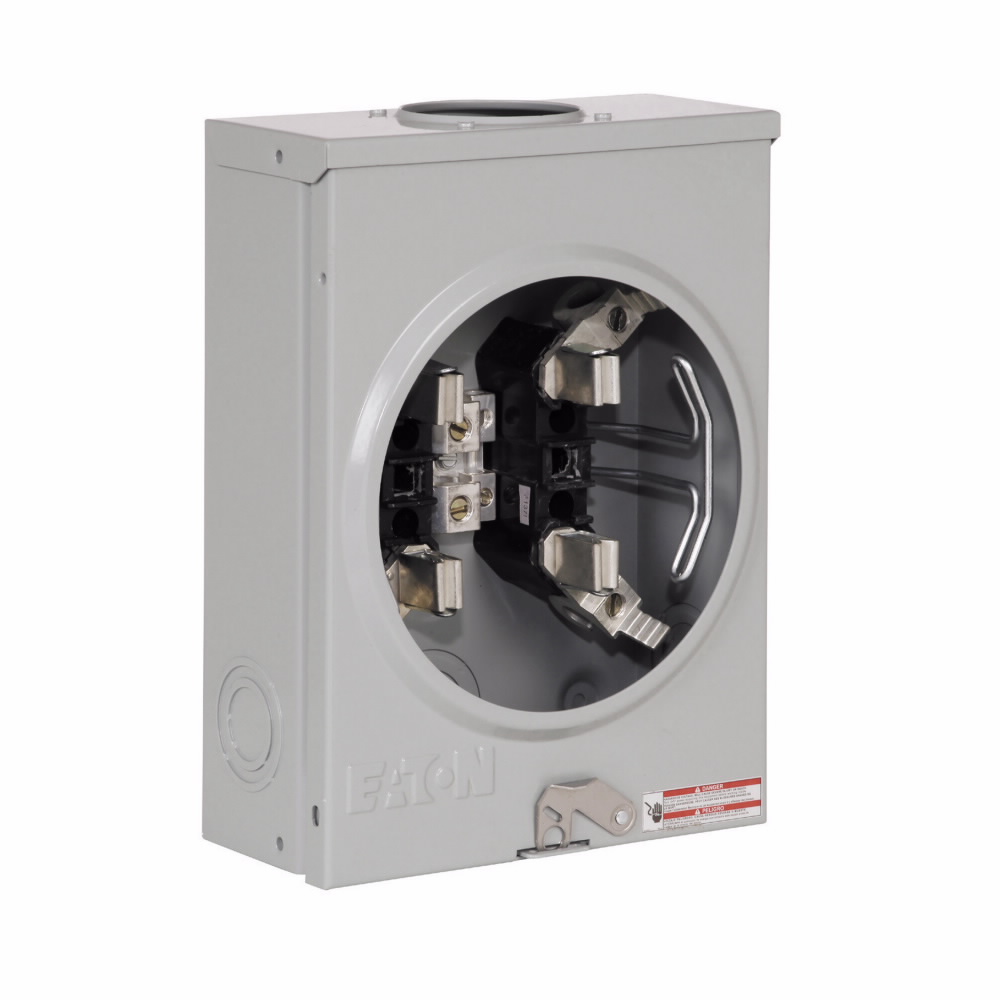

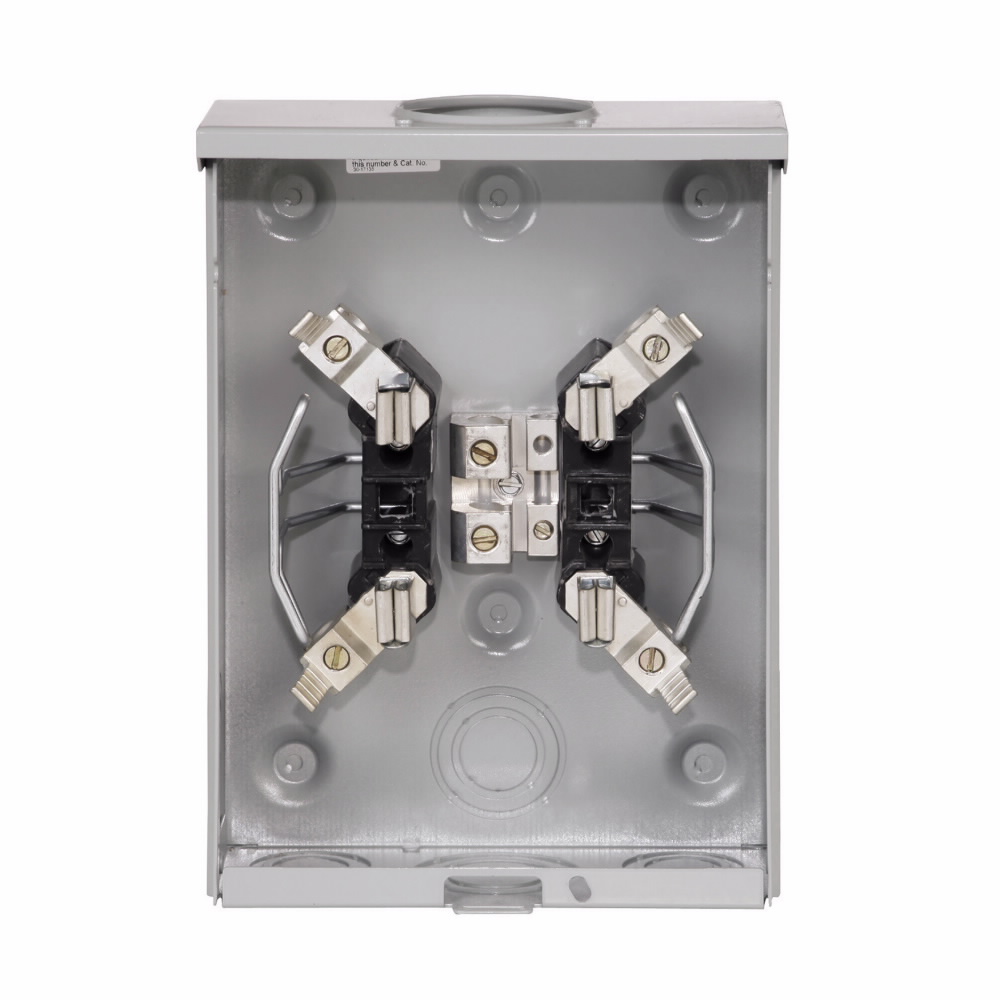

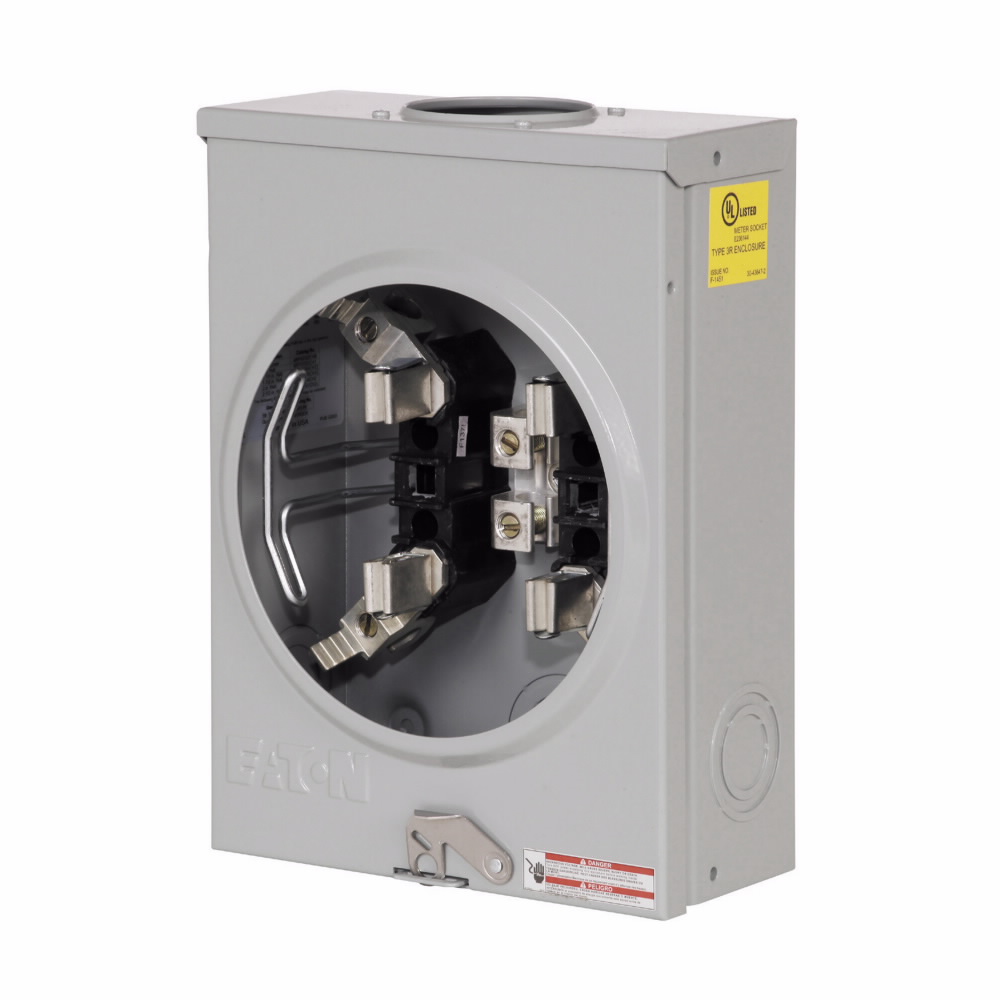

Cutler-Hammer UHTRS101BE
Cutler-Hammer Meter Socket, 600 V, 125 A, 1 ph, 4 Jaws, Overhead Feed, #8 to 2/0 AWG Wire, Wire Configuration: 3-Wire, 1 -Socket, 1 Positions, Bypass Type: Horn, Ringless Cover, Dimensions: 3.61 in L
| Bypass Type | : | Horn |
| Cover Type | : | Ringless |
| Current Rating | : | 125 A |
| Dimensions | : | 3.61 in L |
| Feed Type | : | Overhead |
| Number of Jaws | : | 4 |
| Number of Phases | : | 1 |
| Number of Positions | : | 1 |
| Number of Sockets | : | 1 |
| Voltage Rating | : | 600 V |
| Wire Configuration | : | 3-Wire |
| Wire Size | : | #8 to 2/0 AWG |
Specification Sheet
