RACO 146
With Non-metallic sheathed cable clamps. Two 1/2 in conduit knockouts and four cable knockouts (sides). One 1/2 in conduit knockout (bottom). Used in the installation of ceiling or wall lighting fixtures or as a junction box. 1-1/2 in deep, 15.5 cu-in capacity. 50 lb maximum recommended static load. Not designed for ceiling fan support. Acceptable for use in 2 hr fire rated walls. UL listed.
| Cable Entry | : | Clamp |
| Color | : | Gray |
| Cubic Capacity | : | 15-1/2 cu-in |
| Finish | : | Galvanized |
| Housing Material | : | Steel |
| Mounting Type | : | Screw |
| Number of Gangs | : | 1 |
| Number of Knockouts | : | 3 |
| Overall Depth | : | 1-1/2 in |
| Overall Height | : | 4 in |
| Overall Width | : | 4 in |
- Drawn steel construction with L-clamps provided for non-metallic sheathed cable
- Can be ganged together to house multiple devices
- Combination Phillips/slotted screw heads ensure faster installation
- RACO® offers a variety of labor saving mounting brackets that allow for easy positioning of box along studs or joists
- Fixture bar hanger allows box to be located anywhere along length of bar
Line Drawing
-
-

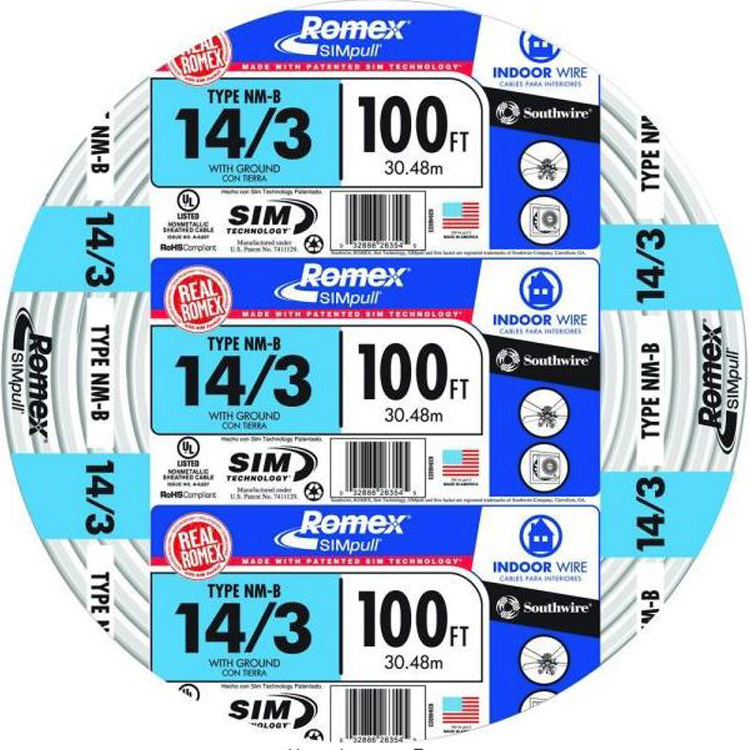

SOUTHWIRE 14/3NM-WGX100
-
