CCI 553036607

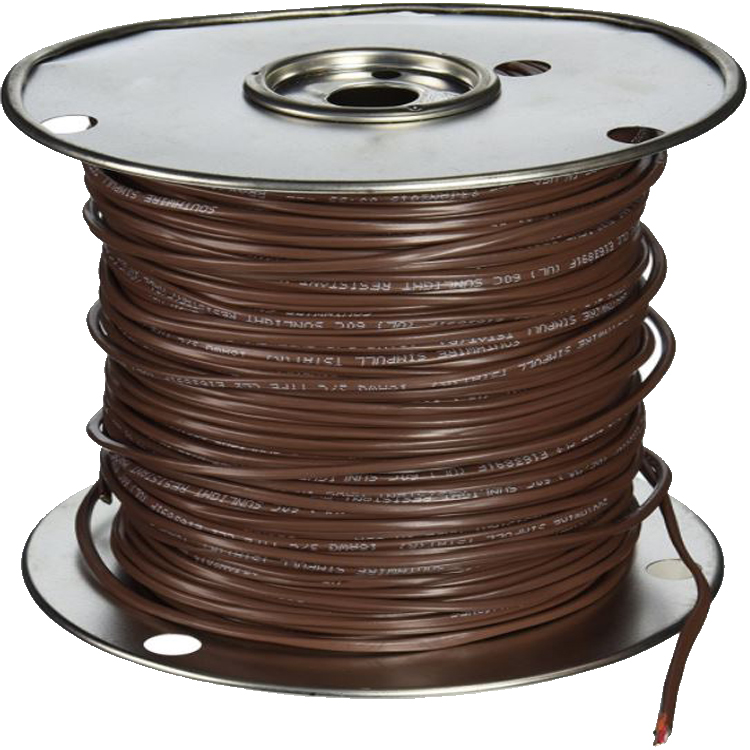

500 ft reel, 18 AWG conductor soft annealed solid copper per ASTM B3-90. PVC thermostatic insulation, temperature 60 deg C. Used for thermostat controls, heating and air conditioning installations, burglar alarm systems, intercom systems and doorbells. Type CL2, 150 V. PVC insulation UL13 for power limited circuit cable for other than plenum, riser or tray uses and UL1581 approved.
California residents see Prop 65 WARNINGS
| Conductor Insulation | : | Polypropylene |
| Conductor Material | : | Copper |
| Number Of Conductors | : | 3 |
| Operating Temperature | : | -20 to 60 deg C |
| Package Size | : | 500 ft |
| Package Type | : | Spool |
| Resistance | : | 6.32 Ohm |
| Sheath Color | : | Brown |
| Sheath Material | : | PVC |
| Stranded/Solid | : | Solid |
| Type | : | Type CL-2 |
| Voltage Rating | : | 150 V |
| Wire Size | : | 18 AWG |
- This cable consists of three bare copper insulated conductors with an overall jacket
- Smooth jacket eliminates snagging and tearing
- PVC jacket, polypropylene insulation ensures excellent strip ability
- Sunlight resistant jacket
