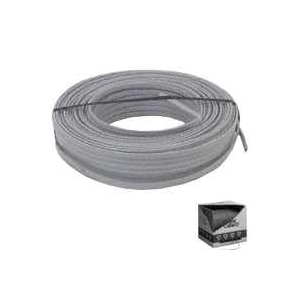

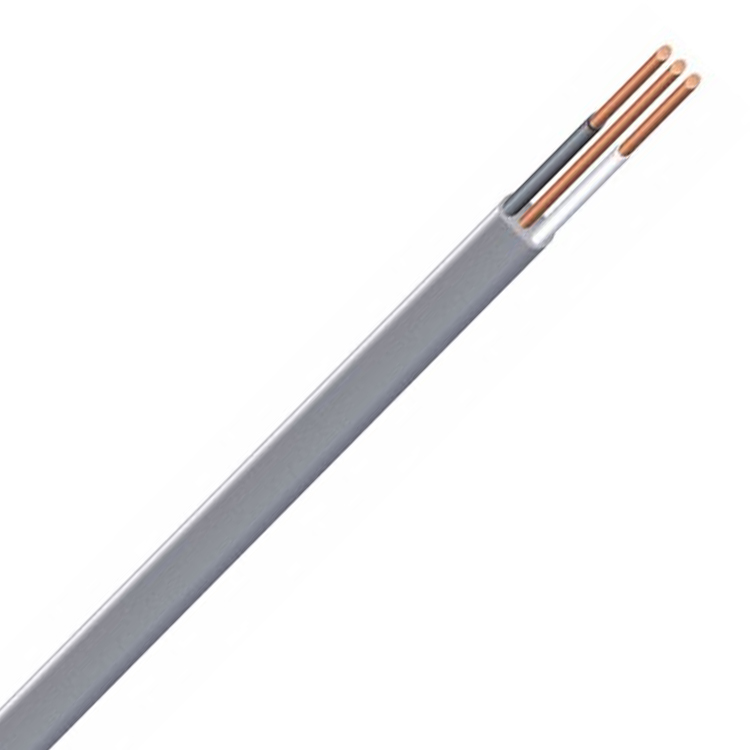

Romex 10/2UF-WGX100
Type THHN® insulation, rated 90 deg C, 600 V. Gray PVC jacket. For applications of direct burial, dwellings not exceeding 3 floors above-grade, underground feeder to outdoor lighting or apparatus, exposed or concealed wiring in damp, moist, wet, dry and corrosive locations, general branch circuit wiring and new wiring or replacement wiring. Flame-retardant, moisture, fungus and corrosion-resistant. Sunlight-resistant jacket. JC-30B Federal specification, ASTM B-3, ASTM B-8 and NY state DOS 16120-880923-2002. UL listed.
| Conductor Insulation | : | PVC |
| Conductor Material | : | Copper |
| Current Rating | : | 30 A |
| Insulation Material | : | PVC |
| Jacket Material | : | Nylon |
| Length | : | 100 ft |
| Number Of Conductors | : | 2 |
| Operating Temperature | : | 90 deg C |
| Resistance | : | Fungus, Moisture, Sunlight |
| Sheath Color | : | Gray |
| Sheath Material | : | Nylon |
| Strands per Conductor | : | 2 |
| Type | : | Type UF-B |
| Voltage Rating | : | 600 V |
| Wire Size | : | 10 AWG |
- Southwire® Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
- Copper conductors are annealed (soft) copper, solid or compressed stranded
- Phase conductors are PVC insulated, nylon jacketed, color-coded for identification purposes
- Jacketed with sunlight, moisture and fungus-resistant gray PVC
- Underground feeder and branch circuit cable
Specification Sheet
