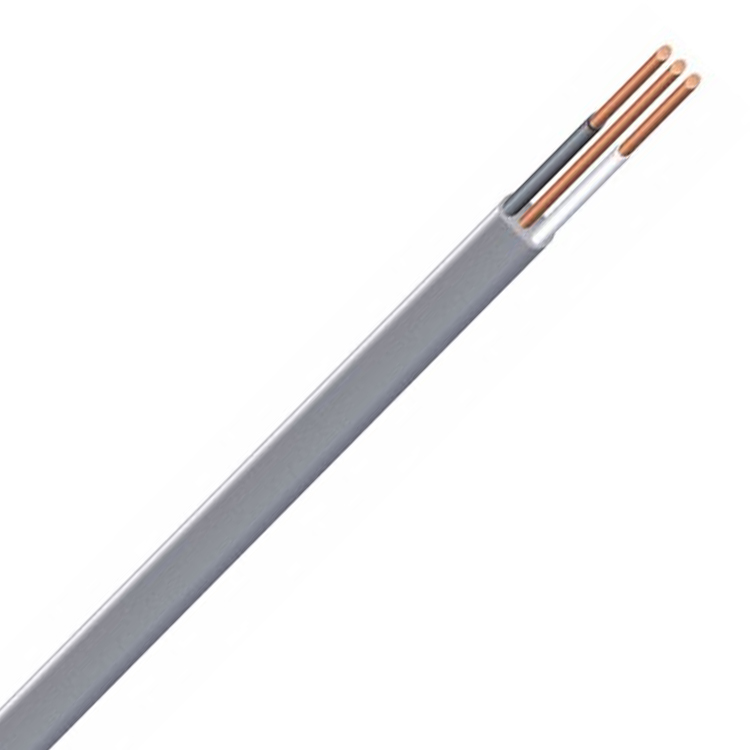

SOUTHWIRE 138-1402AR
Southwire Building Wire, UF-WG, 14 AWG Wire, 25 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, Plastic Conductor Insulation, Nylon Sheath, Gray Sheath, 600 V, 15 A, 90 deg C Operating
| Conductor Insulation | : | Plastic |
| Conductor Material | : | Copper |
| Current Rating | : | 15 A |
| Insulation Material | : | PVC |
| Jacket Material | : | Nylon |
| Length | : | 25 ft |
| Number Of Conductors | : | 2 |
| Operating Temperature | : | 90 deg C |
| Resistance | : | Fungus, Moisture, Sunlight |
| Sheath Color | : | Gray |
| Sheath Material | : | Nylon |
| Strands per Conductor | : | 1 |
| Type | : | UF-WG |
| Voltage Rating | : | 600 V |
| Wire Size | : | 14 AWG |
- Southwire Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
- Copper conductors are annealed (soft) copper, solid or compressed stranded
- Phase conductors are PVC insulated, nylon jacketed, color coded for identification purposes
- Jacketed with sunlight, moisture and fungus-resistant gray PVC
- Underground feeder and branch circuit cable
Specification Sheet
