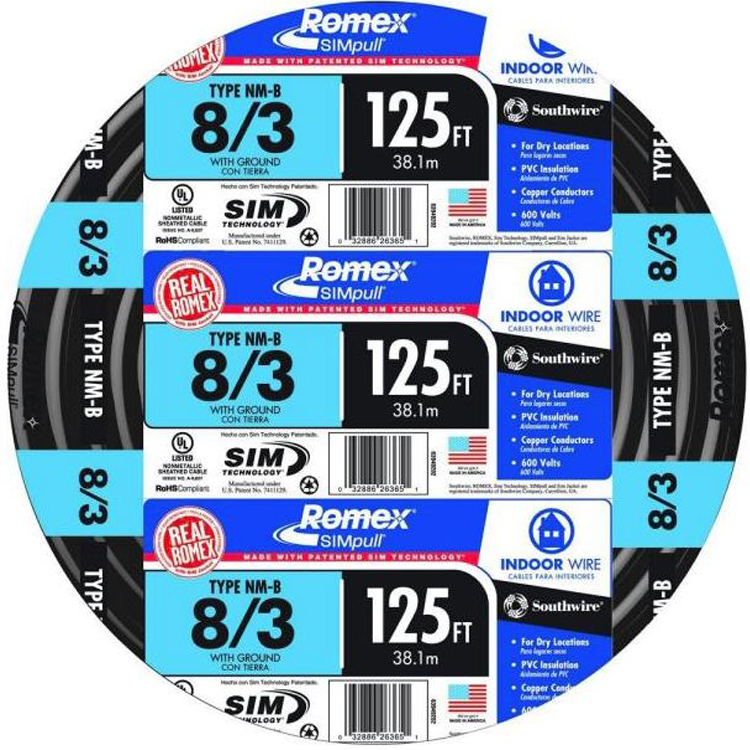

SOUTHWIRE 8/3NM-WGX125
Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
California residents see Prop 65 WARNINGS
| Conductor Insulation | : | PVC |
| Conductor Material | : | Copper |
| Current Rating | : | 40 A |
| Insulation Material | : | PVC |
| Jacket Material | : | Nylon |
| Length | : | 125 ft |
| Number Of Conductors | : | 3 |
| Operating Temperature | : | 90 deg C |
| Sheath Color | : | Black |
| Sheath Material | : | Nylon |
| Strands per Conductor | : | 7 |
| Type | : | NM-B |
| Voltage Rating | : | 600 V |
| Wire Size | : | 8 AWG |
- SIMpull jacket designed for easier pulling
- Color-coded jacket
Specification Sheet
