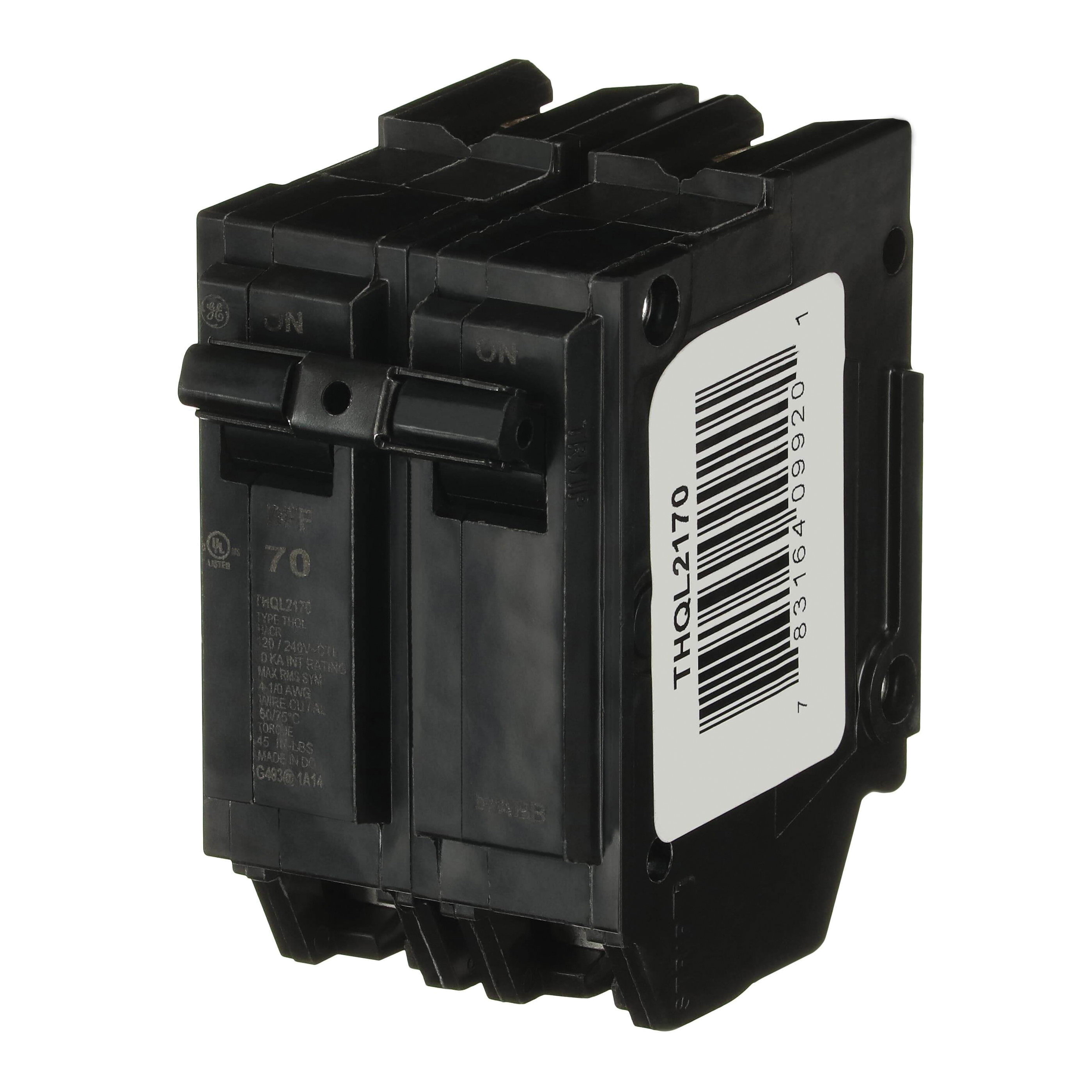

GE Industrial Solutions THQL2170
Q line circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature quick-make / quick-break mechanisms, common trip bars and easy-to-spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2 and three-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
California residents see Prop 65 WARNINGS
| Actuator Type | : | Quick-Break, Quick-Make |
| Current Rating | : | 70 A |
| Dimensions | : | 3.28 in L x 2 in W x 2.38 in H |
| Frame Type | : | Q-Line |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Poles | : | 2 |
| Number of Phases | : | 1 |
| Operating Frequency | : | 50/60 Hz |
| Operating Temperature | : | 60 to 75 deg C |
| Suitable for | : | Reverse Feed |
| Terminal Type | : | Lug |
| Trip Sensitivity | : | 700 A |
| Trip Type | : | Non-Interchangeable |
| Type | : | Type THQL |
| Voltage Rating | : | 120/240 V |
| Wire Size | : | 6 to 1/0, 4 to 1/0 AWG |
- Plug-in design for easy installation
